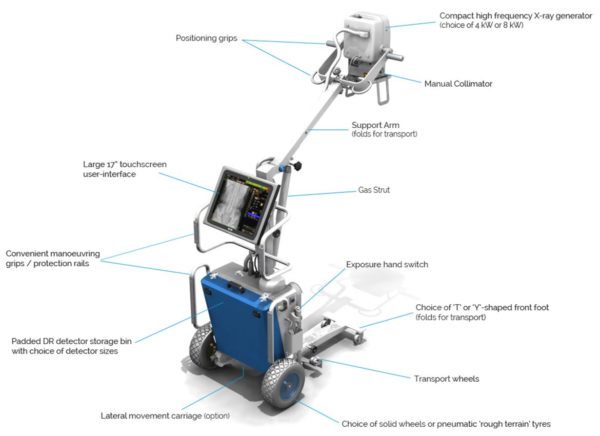

TXR Dragon 4kW and 8kW 125kVp : world’s most powerful portable x-ray

DR & DR Kit Optional

• Powerful 100mA, 125kVp
• LED Collimator
• Exceptional Arm Mobility
• Activate Collimator Light from 4 Locations
• Fractional Focal Spot Tube for Greater Detai

Specifications:

• 4.0 kW, 100 mA, 125 kVp or 8.0 kW, 100 mA, 125 kVp
• High Frequency Ripple: 300 kHz
• 40 to 125 kVp in 1 kVp steps
• Console options
• a) Touch Screen: Allows customization of 6 APR regions (skull, thorax, spine, abdomen/pelvis, lower and upper extremities) – small, medium, large and pediatric patient sizes, or
• b) Durable Overlay Membrane Console allows customization of 1 APR region (20 editable positions)
• 14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 and 100
• 0.001-10 second exposure time range, 41 total in 25% steps
• 0.1 to 250 mAs, 34 total in 25% steps
• Tube: 0.6mm x 2.8mm dual focus stationary anode tube, 40,000 HU (4kW)
• Tube: 0.6mm x 2.8mm dual focus stationary anode tube, 76,000 HU (8kW)
• Positive mechanical brakes
• Cassette storage box accommodates up to 8 cassettes – TXR Dragon 4/8kW Portable X-Ray exclusive
• 102.5 lbs total weight
• Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Conditions
• For 4kW : 110/240vac – requires solid 20amp breaker on 110V line for full power
• For 8kW : Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Conditions. 220 / 240 VAC required
